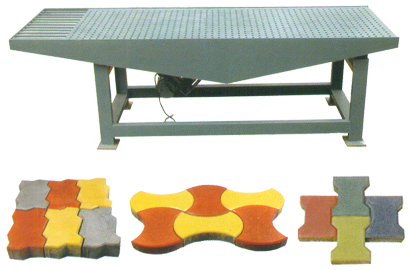

Vibrating Tables, Rubber Mould Paver Blocks

We are Manufacturer, Supplier, Exporter of Vibrating Tables, Rubber Mould Paver Blocks and our setup is situated in Satara, Maharashtra, India.

Rubber Mould
Request a Quote
Main Features :

  • Made of 10 mm thick MS Plate.
  • Base Frame made of 100 X 50 MS Channels.
  • Good Quality Vibrating Pads, Vibrator.
  • Easy to Shift from One palce to another place.
  • No Foundation required.
  • Mould Passing Time -40 Sec.
  • Table Size 3ft x 10ft.

Description
Capacity
Power
Rubber Mould Vibratory Table 2000 nos. Shift 2 HP

Specification

Value

Table Length

3000 mm

Table Width

900 mm

Vibrator Hp

02 Hp

Top Plate Thickness

08 mm

Side Plate Thickness

10 mm

Mold pass time on table 45 -50 Sec.
