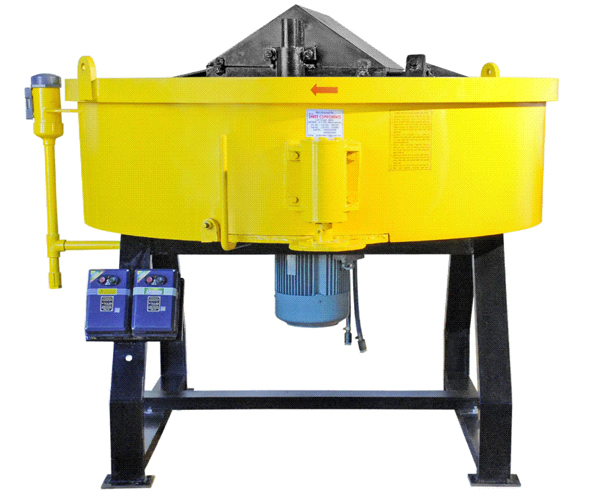

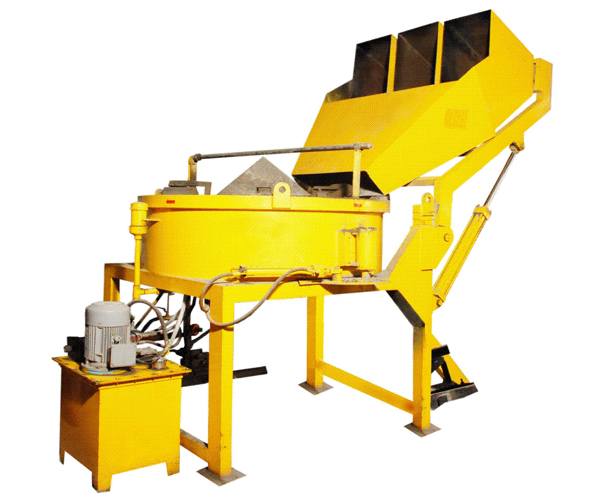

We are Manufacturer, Supplier, Exporter of Pan Type Concrete Mixers and our setup is situated in Satara, Maharashtra, India.
Particulars | Unit | PL 250 | PL 400 | PL 600 | PL 800 | PL 1200 | PL 1800 |
Dry Filling Capacity | liter | 150 | 250 | 375 | 750 | 1125 | |
Kg | 250 | 400 | 600 | 900 | 1200 | 1800 | |
Concrete Output per Cycle | liter | 100 | 150 | 250 | 375 | 500 | 750 |
CuM | 0.10 | 0.17 | 0.25 |
0.375 | 0.50 | 0.75 |
|
Inner Pan Dia | mm | 1308 | 1538 | 1700 | 1900 | 2072 | 2300 |
Mixing Motor HP | HP | 5.00 | 7.50 | 10.00 | 20.00 | 25.00 | 30.00 |
Speed of Gearbox | RPM | 20 | 20 | 20 | 21 | 21 | 21 |
Number of Mixing Arms | Nos | 3 | 3 | 4 | 4 | 5 | 5 |
Number of Scrapers | Nos | 2 | 2 | 2 | 2 | 2 | 2 |
liner Tiles | Material | high manganese Steel / (Quard 500 optional as per required) | |||||
liner Tiles Hardness | BHN | 500 | 500 | 500 | 500 | 500 | 500 |
liner Tiles Wall Thickness | mm | 10 | 10 | 10 | 10 | 10 | 10 |
liner Tiles Shell Thickness | mm | 6 | 6 | 6 | 6 | 6 | 6 |
Mixing blades | Material | Ni-Hard Cast Iron | |||||
Mixing blades Hardness | HRC | 50 | 50 | 50 | 50 | 50 | 50 |
BHN | 469 | 469 | 469 | 469 | 469 | 469 | |
Water spray bar | Shower type | ||||||
Additional discharge doors | Optional Max 02 | ||||||
Door opening | Optional | Hydraulic / Pneumatic / Manual |
